Product Details:
|
| Product Name: | Black Epoxy Coated Mild Steel Wire Mesh Used As A Support Layer For Hydraulic Filters | Material: | Mild Steel Or Called, Plain Steel And Low Carbon Steel |
|---|---|---|---|
| Woven Type: | Plain Weave Or Twilled Weae | Inventory Status: | Some Specifications Are In Stock And Some Not |
| Painting Color: | Black, Gray, Or Upon Order | Max Width: | 4 Meters |
| Highlight: | Epoxy Coated Mild Steel Wire Mesh,4m Epoxy Coated Wire Mesh,4m Mild Steel Wire Mesh |
||

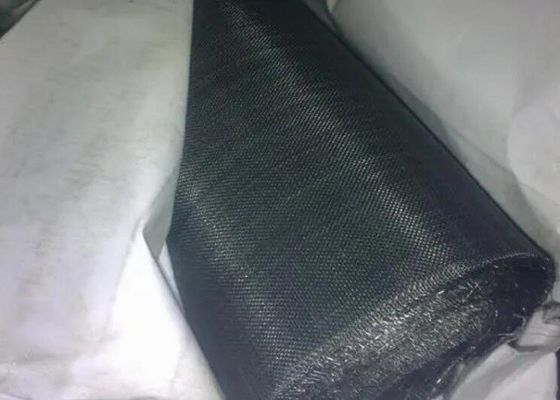

Black Epoxy Coated Mild Steel Wire Mesh Used as a Support Layer for Hydraulic Filters
Black Epoxy Coating is an exterior coating compound consisting of two distinct elements: an epoxy resin and a polyamine hardener. With full epoxy coating, the wire mesh would be durable, and rigid. So this plastic coating is more often applied to the mild steel woven wire mesh.
Black Epoxy Coated Woven Wire Mesh is usually used as a support layer for filter elements, such as hydraulic filters and air filters. Our epoxy coating offers high adhesion and excellent pleating properties to effectively protect and reinforce the mesh.
Applications: Automotive, defense, and hydraulic machinery.
Materials: Mild Steel, Aluminium, and Stainless Steel, with a regular thin coating in black, or colors upon request.
Main Features: High adhesion, High tensile strength, Lightweight, Consistent Quality, Good Pleating Properties, and High Additive Resistance.
Besides mild steel, stainless steel, and aluminium were also used to weave the wire mesh as the mesh support layer with black epoxy coating.
Usually, the color of epoxy coating is black, and the customized color would also be offered, such as gray, white and etc. The epoxy-coated woven wire mesh could be offered with standard roll width, also strips with the required size, economical, eco-friendly, and durable.
Epoxy-coated woven wire mesh could also be used as the insect or safety screens on windows and doors, mainly to stop the flies, mosquitoes, bugs, and other insects in hotels, buildings, and houses.
Here are some very commonly used specifications of the black epoxy-coated mild steel woven wire mesh for Hydraulic Filters, just for your reference. Other specifications, sizes, and woven types are made to order. Please contact our sales team to discuss this.
| Commonly Used Epoxy Coated Mild Steel Wire Mesh Specification | |||
| Mesh Count | Wire Dia. Mm | Opening mm | Opening Area % |
| 8x8 | 0.51 | 2.665 | 70.56 |
| 8x8 | 0.64 | 2.535 | 64 |
| 10x10 | 0.64 | 1.905 | 56.3 |
| 12x12 | 0.23 | 1.887 | 79.56 |
| 16x16 | 0.23 | 1.359 | 73.27 |
| 16x16 | 0.25 | 1.448 | 73.1 |
| 16x16 | 0.46 | 1.13 | 50.7 |
| 24x24 | 0.23 | 0.831 | 61.6 |
| 22x22 | 0.18 | 0.974 | 71.24 |
| 24x24 | 0.18 | 0.878 | 68.87 |
| 30x30 | 0.15 | 0.696 | 67.7 |
Attention
Be careful of the cutting sharp edge, and avoid getting hurt while open and use.
Before you order your mesh, please first check out our stock list, where we put our over-run bargain rolls at lower prices.
King De Long Wire Mesh Company can manufacture not only woven wire mesh but also welded wire mesh with the specified wire and mesh size you required. Should you have a particular specification in mind, please contact us to discuss your requirements.
For your reference, some photos of our products and factory are listed here, please check.
